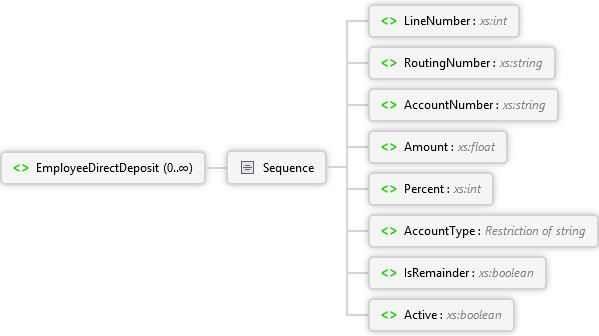

EmployeeDirectDeposit Element

EmployeeDirectDeposit 0..∞

Sequence

LineNumber xs:int

RoutingNumber xs:string

AccountNumber xs:string

Amount xs:float

Percent xs:int

AccountType Restriction of xs:string

IsRemainder xs:boolean

Active xs:boolean

<xs:element name="EmployeeDirectDeposit" maxOccurs="unbounded" minOccurs="0" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element type="xs:int" name="LineNumber" />
      <xs:element type="xs:string" name="RoutingNumber" />
      <xs:element type="xs:string" name="AccountNumber" />
      <xs:element type="xs:float" name="Amount" nillable="true" />
      <xs:element type="xs:int" name="Percent" nillable="true" />
      <xs:element name="AccountType">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:enumeration value="Checking" />
            <xs:enumeration value="Savings" />
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element type="xs:boolean" name="IsRemainder" />
      <xs:element type="xs:boolean" name="Active" />
    </xs:sequence>
  </xs:complexType>
</xs:element>
